EDM Fluids & Dielectric Oils for EDM Machining

EDM fluids (dielectric fluids or EDM oils) are designed for stable electrical discharge machining performance. Our range of dielectric liquids ensures consistent spark conditions, low electrode wear, and high-quality surface finish for sinker and wire EDM applications.

Browse high-performance EDM fluids engineered for precision machining, long service life, and safe operation with fast Canada-wide delivery.

Total found: 2

Only new

Only in stock

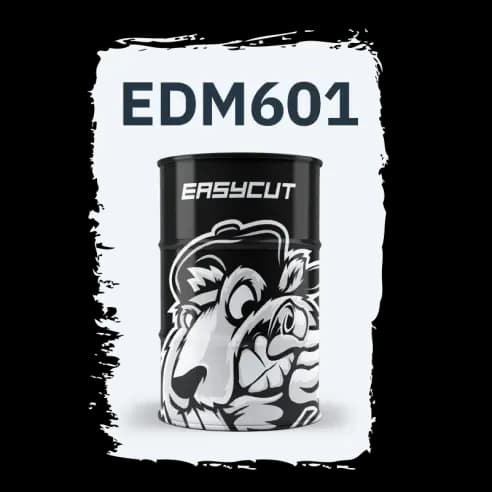

EDM Dielectric Oil EASYCUT EDM601 - 55 Gallon

CA$1,041.44 excl. taxes

CA$1,062.69

EDM601-55Running out of stock

EDM Dielectric Oil EASYCUT EDM601 - 55 Gallon

EDM101-55Made to order

EDM Dielectric Oil EASYCUT EDM101 - 55 Gallon

EDM Fluids & Dielectric Oils for Electrical Discharge Machining

EDM fluid, also known as dielectric fluid, dielectric liquid, or EDM oil, is a core element of electrical discharge machining. In sinker EDM and oil-wire EDM, the fluid insulates the electrode and workpiece, supports stable spark generation, cools the machining zone, and removes eroded particles from the gap.

High-quality EDM fluids are formulated for reliable machining performance, reduced electrode wear, and consistent surface finish across roughing and finishing operations.

What EDM Fluids Do

Electrical Insulation: creates the proper conditions for controlled spark discharge between electrode and workpiece.
Discharge Stability: supports ionization during the spark and restores insulating properties between pulses.
Cooling: reduces thermal stress on the workpiece and electrode.
Flushing: removes debris from the spark gap to maintain stable machining conditions.

How to Evaluate EDM Fluids

When selecting an EDM dielectric fluid, performance depends on more than basic insulation. The right fluid should support machining quality, long service life, and safe operation.

Machining Performance: promotes high material removal rates, low electrode wear, and clean surface finish.
Dielectric Strength: ensures stable spark behaviour and controlled discharge conditions.
Low Volatility: helps reduce fluid loss, odour, and air contamination.
High Flash Point: improves fire safety and lowers operating risk.
Oxidation Stability: extends fluid life and reduces replacement frequency.
Filterability: allows effective removal of sludge and particles through standard EDM filtration systems.
Material Compatibility: must be safe for machine components, seals, hoses, and workpiece materials.

Viscosity and Application Range

Viscosity is one of the most important selection factors for dielectric liquids. Different machining conditions may require different fluid behaviour:

4.0-6.5 cSt: suitable for larger work areas and higher discharge currents.
2.0-3.5 cSt: universal range for most EDM applications.
Below 2.0 cSt: preferred for super-finishing and polishing where fluid penetration into narrow gaps is critical.

Many universal EDM oils are designed to balance flushing efficiency, cooling performance, and stable dielectric behaviour across a broad operating range.

EDM Fluids & Dielectric Oils for Electrical Discharge Machining

High-quality EDM fluids are formulated for reliable machining performance, reduced electrode wear, and consistent surface finish across roughing and finishing operations.

What EDM Fluids Do

Electrical Insulation: creates the proper conditions for controlled spark discharge between electrode and workpiece.

Discharge Stability: supports ionization during the spark and restores insulating properties between pulses.

Cooling: reduces thermal stress on the workpiece and electrode.

Flushing: removes debris from the spark gap to maintain stable machining conditions.

How to Evaluate EDM Fluids

When selecting an EDM dielectric fluid, performance depends on more than basic insulation. The right fluid should support machining quality, long service life, and safe operation.

Machining Performance: promotes high material removal rates, low electrode wear, and clean surface finish.

Dielectric Strength: ensures stable spark behaviour and controlled discharge conditions.

Low Volatility: helps reduce fluid loss, odour, and air contamination.

High Flash Point: improves fire safety and lowers operating risk.

Oxidation Stability: extends fluid life and reduces replacement frequency.

Filterability: allows effective removal of sludge and particles through standard EDM filtration systems.

Material Compatibility: must be safe for machine components, seals, hoses, and workpiece materials.

Viscosity and Application Range

Viscosity is one of the most important selection factors for dielectric liquids. Different machining conditions may require different fluid behaviour:

4.0-6.5 cSt: suitable for larger work areas and higher discharge currents.

2.0-3.5 cSt: universal range for most EDM applications.

Below 2.0 cSt: preferred for super-finishing and polishing where fluid penetration into narrow gaps is critical.

Many universal EDM oils are designed to balance flushing efficiency, cooling performance, and stable dielectric behaviour across a broad operating range.
