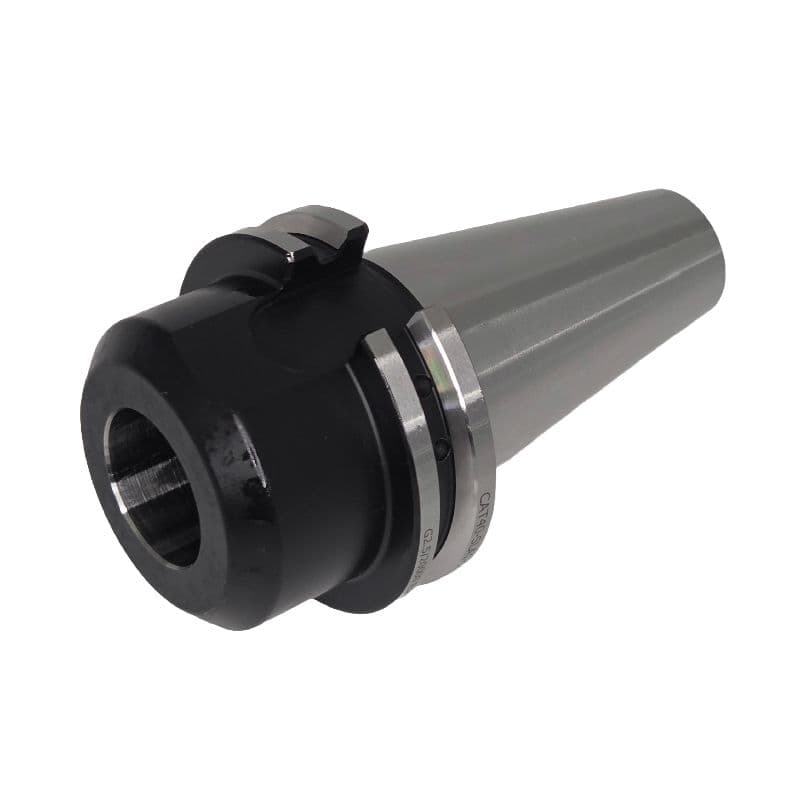

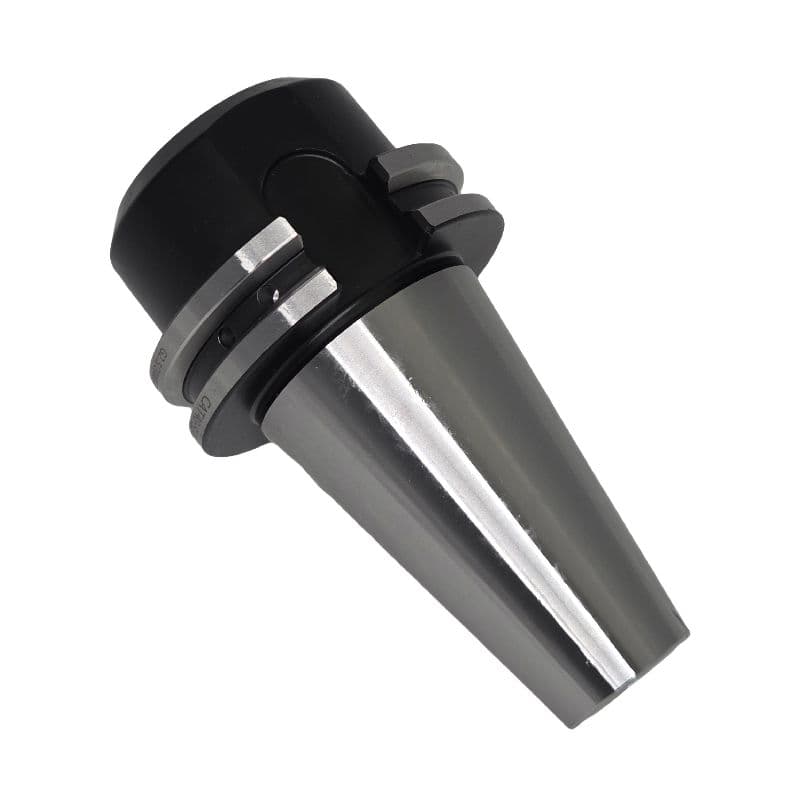

CAT40 (CT40) Ø 1" end mill holder, weldon x 1.75" gage length, G2.5 balancing

EM1T40iH1-75Running out of stock

Compact CAT40 end mill holder designed for Ø 1” tools, providing exceptional clamping stability and precision. Pull stud thread is 5/8-11. Free delivery across Canada included!

CA$79.08

CA$80.69

Std. delivery incl. Crossed-out price = offline retail

2 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Mill Spindle Standard

CAT40 (CT40)

Mill holder type

End Mill (Weldon)

Tool Diameter, Inch

Brand

EASYCUT

Item type

Milling Tool Holders

Technical Description

The EM1T40iH1-75 is a top-tier CAT40 (CT40) end mill holder built to ANSI B5.50 standards, delivering superior performance and precision. Designed to accommodate Ø 1” end mills, it features a Weldon-style clamping mechanism for secure tool retention and reduced vibration.

Its 1.75-inch gage length ensures optimal rigidity for applications requiring shorter tool overhang. Fabricated from alloyed case-hardened steel and finished with a durable blackened and bright coating, this toolholder offers excellent durability and wear resistance. Balanced to G2.5 at 25,000 RPM, it provides smooth performance even at high speeds. Key features include a taper tolerance of AT3, a hardness range of HRC 58-62, and a carbon depth of 0.8±0.2mm for extended longevity. With a surface roughness of Ra 0.005mm and AD cooling capability, this toolholder is built for precision and efficiency in demanding machining tasks.

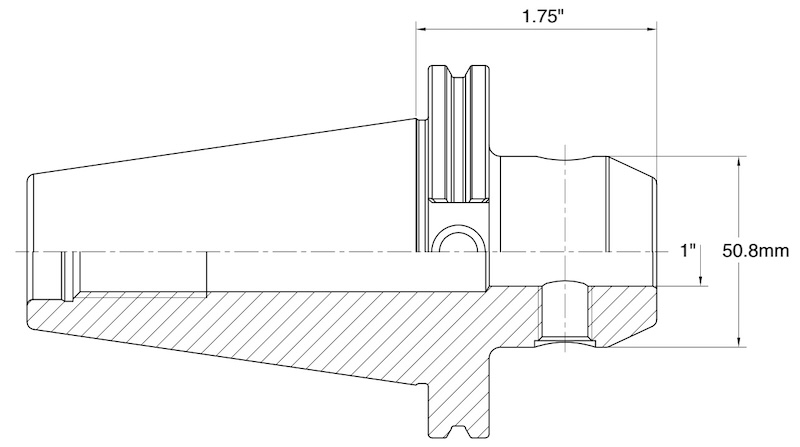

Deatails:

CAT40 5/8
