CAT40 (CT40) Ø 5/8" (0.625") end mill holder, weldon x 3" gage length, G2.5 balancing

Total discount 2%

Running out of stock

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/1cb/123/011/em0625t40ih3.jpg

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/5db/510/072/em0625t40ih3_1.jpg

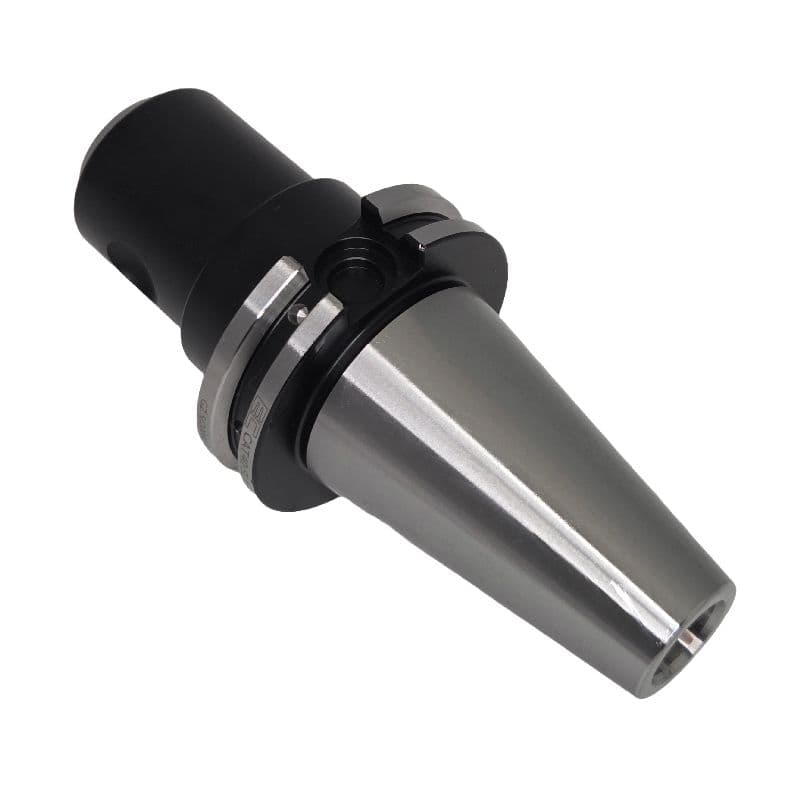

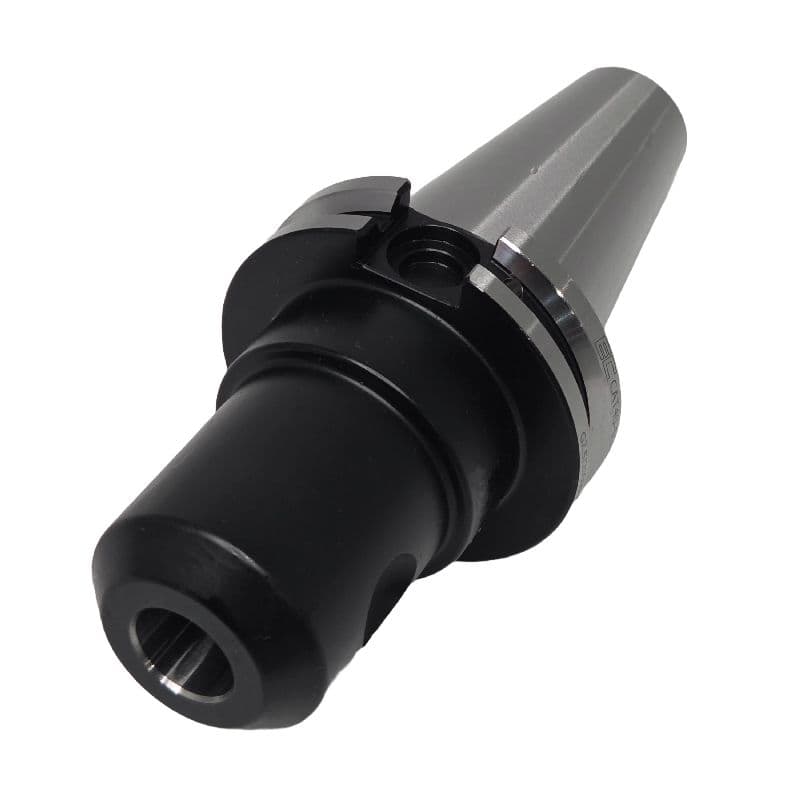

CAT40 (CT40) Ø 5/8" (0.625") end mill holder, weldon x 3" gage length, G2.5 balancing

EM0625T40iH3Running out of stock

High-performance CAT40 end mill holder designed for precise and stable machining with optimal tool clamping. Pull stud thread is 5/8-11. Free delivery across Canada included!

CA$73.68

CA$75.18

Std. delivery incl. Crossed-out price = offline retail

3 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Mill Spindle Standard

CAT40 (CT40)

Mill holder type

End Mill (Weldon)

Tool Diameter, Inch

5/8 (0.625)

Brand

EASYCUT

Item type

Milling Tool Holders

Technical Description

The EM0625T40iH3 is a robust CAT40 (CT40) end mill holder built to ANSI B5.50 standards for superior precision. Designed for Ø 5/8” (0.625”) end mills, it features a Weldon-style clamping mechanism for secure tool retention and stability during operations.

With a 3-inch gage length, it offers excellent reach for various machining applications. Manufactured from alloyed case-hardened steel with a blackened and bright finish, it provides exceptional durability. This toolholder is balanced to G2.5 at 25,000 RPM, ensuring smooth, high-speed performance. Additional features include a taper tolerance of a hardness rating of HRC 58-62, and a carbon depth of 0.8±0.2mm for enhanced longevity. Surface roughness is maintained below Ra 0.005mm, guaranteeing precision. Equipped with AD cooling capability, this toolholder is ready to enhance your machining efficiency.

Details:

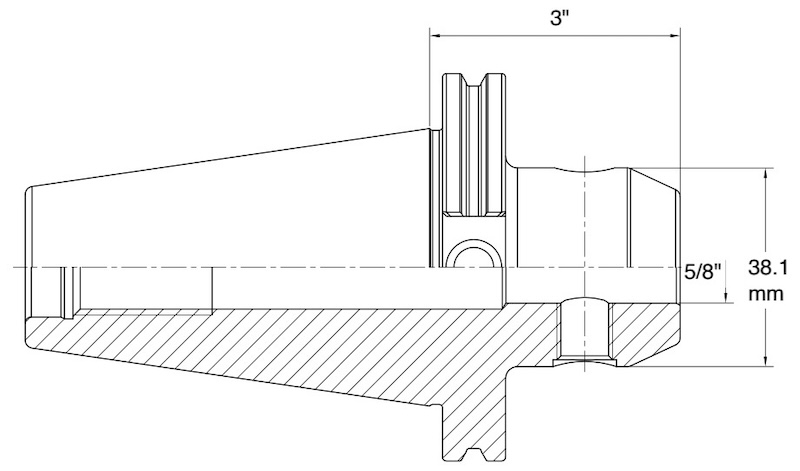

EM0625T40iH3 Drawing
