CAT40 (CT40) Ø 5/8" (0.625") end mill holder, weldon x 1.75" gage length, G2.5 balancing

Total discount 2%

Running out of stock

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/d77/422/654/em0625t40ih1-75.jpg

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/7cd/382/4b7/em0625t40ih1-75_1.jpg

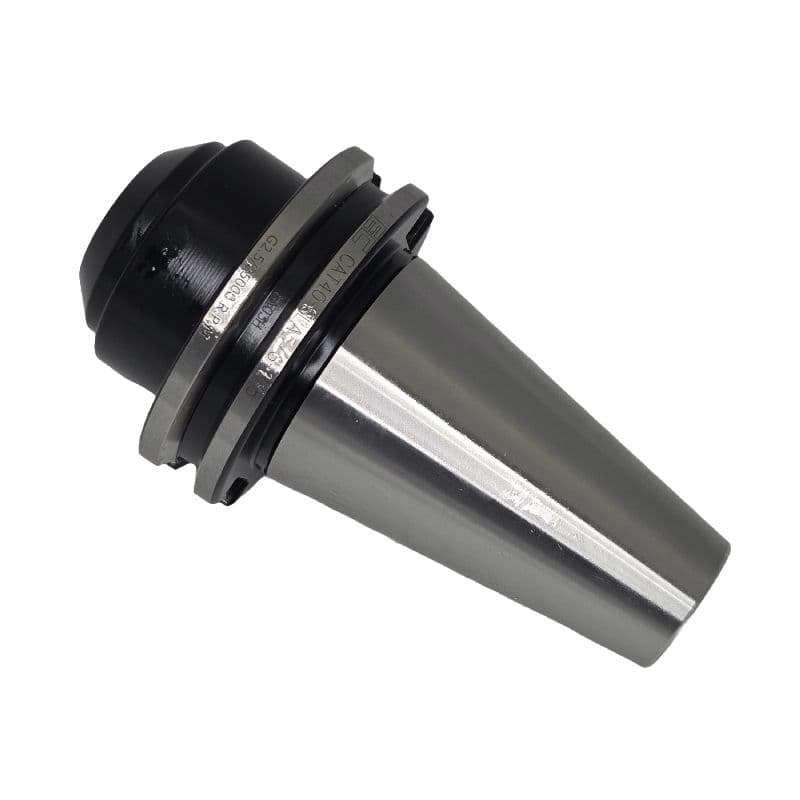

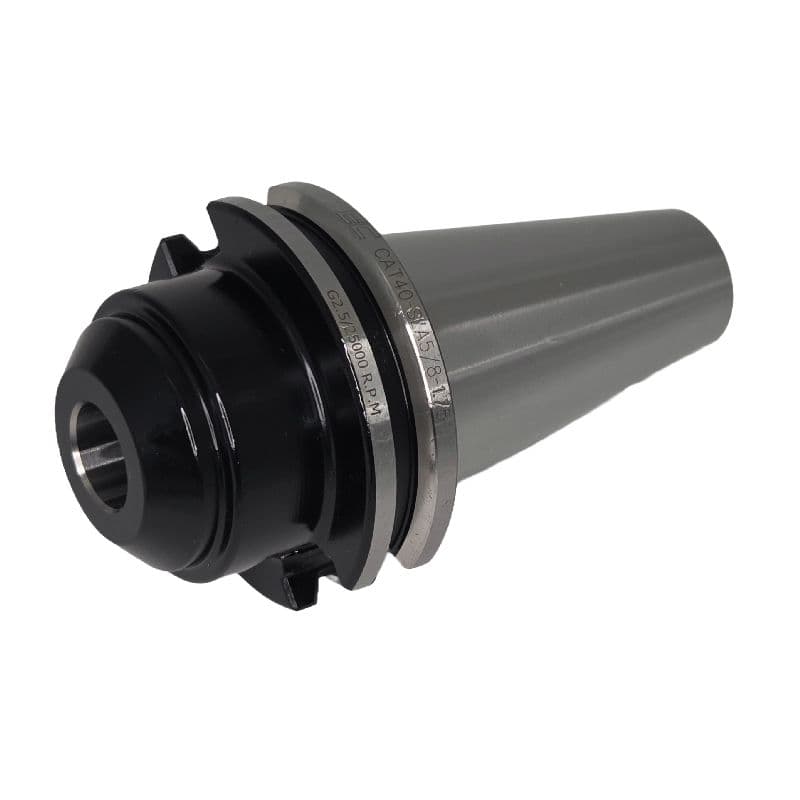

CAT40 (CT40) Ø 5/8" (0.625") end mill holder, weldon x 1.75" gage length, G2.5 balancing

EM0625T40iH1-75Running out of stock

Compact CAT40 end mill holder designed for precision and stability in machining with a pull stud thread of 5/8-11. Free delivery across Canada included!

CA$73.68

CA$75.18

Std. delivery incl. Crossed-out price = offline retail

2 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Mill Spindle Standard

CAT40 (CT40)

Mill holder type

End Mill (Weldon)

Tool Diameter, Inch

5/8 (0.625)

Brand

EASYCUT

Item type

Milling Tool Holders

Technical Description

The EM0625T40iH1-75 is a high-quality CAT40 (CT40) end mill holder engineered to ANSI B5.50 standards for unmatched precision. Designed for Ø 5/8” (0.625”) end mills, it incorporates a Weldon-style clamping system for reliable tool retention and vibration reduction.

Its 1.75-inch gage length makes it ideal for applications requiring shorter tool overhang, enhancing rigidity and performance. Constructed from alloyed case-hardened steel and treated with a blackened and bright finish, this toolholder offers exceptional durability and resistance to wear. Balanced to G2.5 at 25,000 RPM, it ensures smooth operation even at high speeds. Additional specifications include a taper tolerance of AT3, a hardness range of HRC 58-62, and a carbon depth of 0.8±0.2mm for extended service life. The surface roughness of Ra 0.005mm guarantees excellent precision, and AD cooling capability supports efficient machining.

Details:

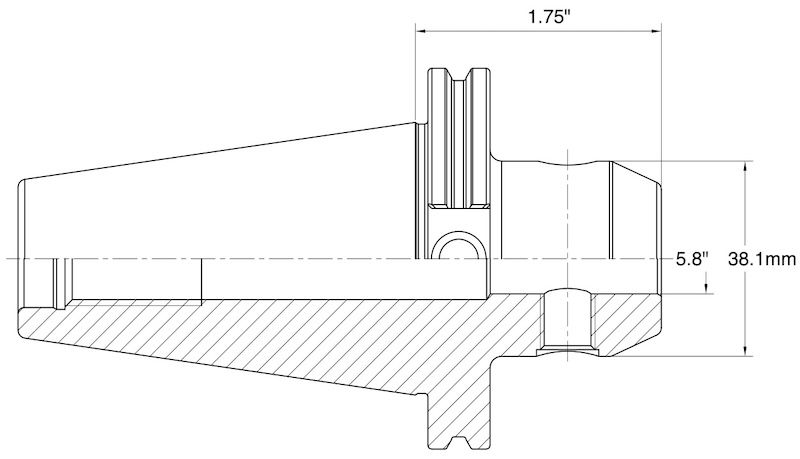

EM0625T40iH1-75 Drawing
