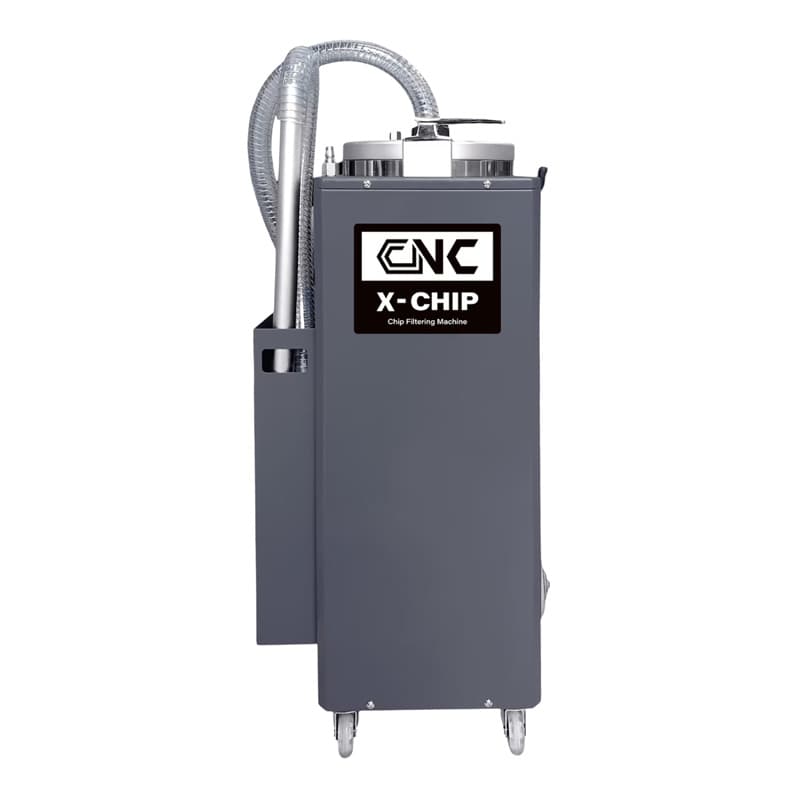

Chip skimmer and coolant filter for CNC machines, air-powered

CFM100Running out of stock

A compact and mobile chip filtering system for cleaning your CNC coolant tank. Efficiently removes sediment from the bottom and floating chips from the surface. Circulates and filters the coolant without the need for electricity. CNCmarket.ca provides a 12-month warranty and free shipping within Canada.

CA$4,482.46

CA$4,573.94

Std. delivery incl. Crossed-out price = offline retail

1 pcs.in stock in Calgary (T2C 1Z6)

Media

Technical Description

Reviews

X-CHIP performance + DOOSANMarch 26, 2025

X-CHIP performance + HWACHEONMarch 26, 2025

X-CHIP performance + SMECMarch 26, 2025

X-CHIP performance + DMGMarch 26, 2025

Technical Description

The X-CHIP is an advanced, air-powered filtering system designed to suction and remove chips and sludge from the bottom of coolant tanks, then return the cleaned fluid back to the reservoir. As the filtered coolant is returned, it passes through an air bubble generator, which creates microbubbles. These negatively charged bubbles bind to positively charged contaminants, lifting them to the surface for secondary collection.

With the help of a special mounting bracket, the second stage of X-CHIP operation targets light, floating chips and solid particles on the coolant surface, delivering comprehensive two-level cleaning.

Stage 1 (bottom cleaning) visualisation:

X-chip skimmer bottom cleaning
