VDI40 Boring bar holder, Ø 40mm, H 140mm, MAZAK

KMZ-53208005200Running out of stock

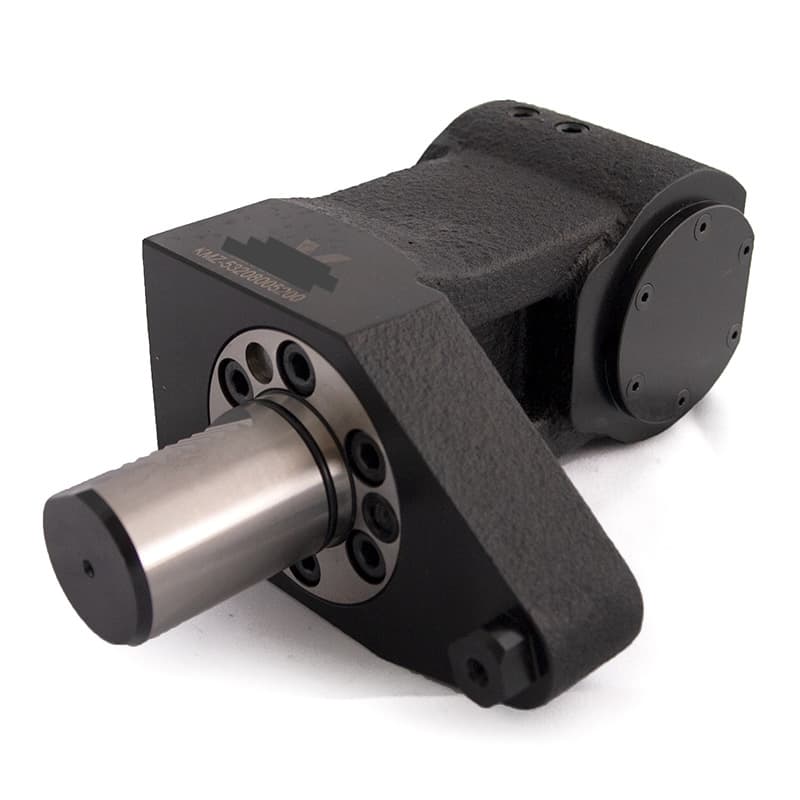

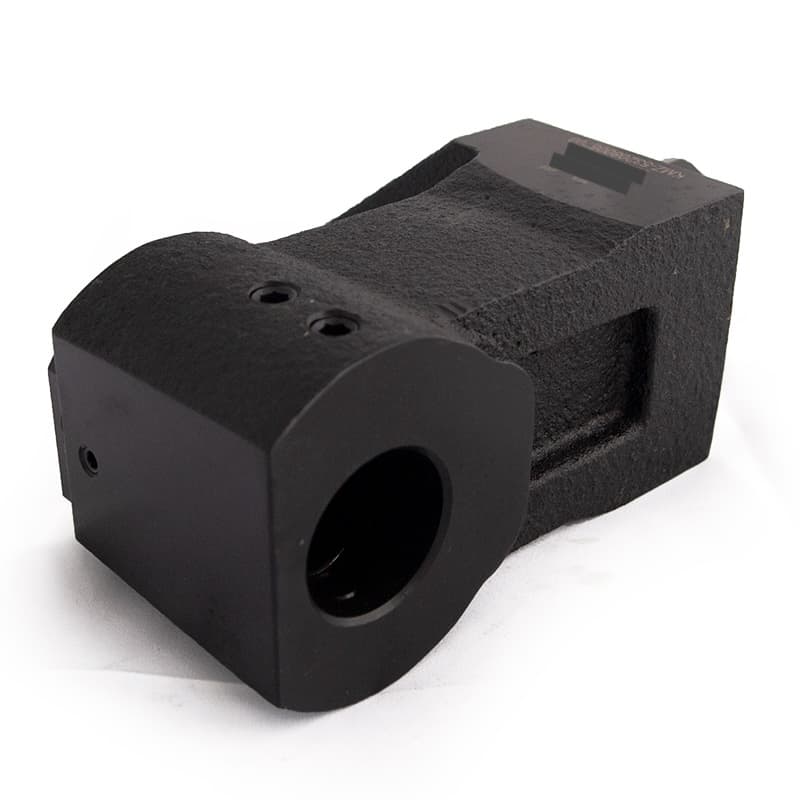

This axial boring bar toolholder fits to MAZAK SQT and QTN series lathes equipped with VDI40 (DIN 69980) radial turret. It holds tools with round shunk of ⌀40mm for ID turning. Height: 140mm. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$401.46

CA$573.51

Std. delivery incl. Crossed-out price = offline retail

1 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Lathe holder type

Boring bars / Index drills

Turret type

Tool Diameter, mm

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:VDI40 Radial

Technical Description

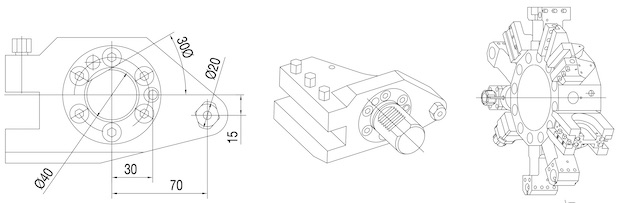

Engineered for longevity and performance, this VDI40 tool holder (SKU: KMZ-53208005200) delivers unmatched versatility for demanding operations. The CNC lathe boring bar tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for securing any tool with a cylindrical shank, particularly and primarily boring bars used for internal machining of parts. This VDI30-type holder is positioned on the turret edge, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 40mm, and the height from the turret edge to the hole axis is 140mm. Reducer sleeves can be used for tools with smaller diameters. This holder is compatible with the following machine tool models, equipped with a VDI40 radial turret featuring slots on the edge: MAZAK SQT 15, SQT 18 M / MS SQT 200, SQT 250 M / MS QTN 200, QTN 250 M / MB / MS / MY / MSY.

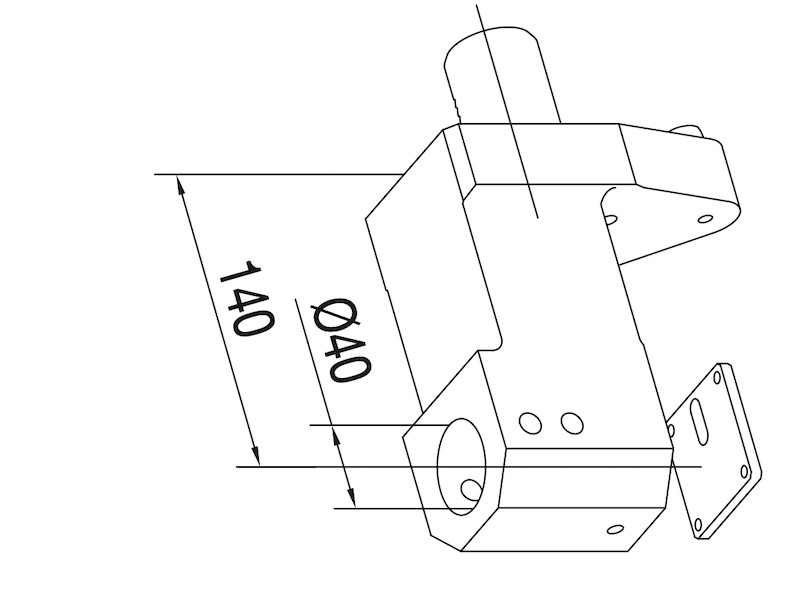

Details, mm:

KMZ-53208005200 Details mm
