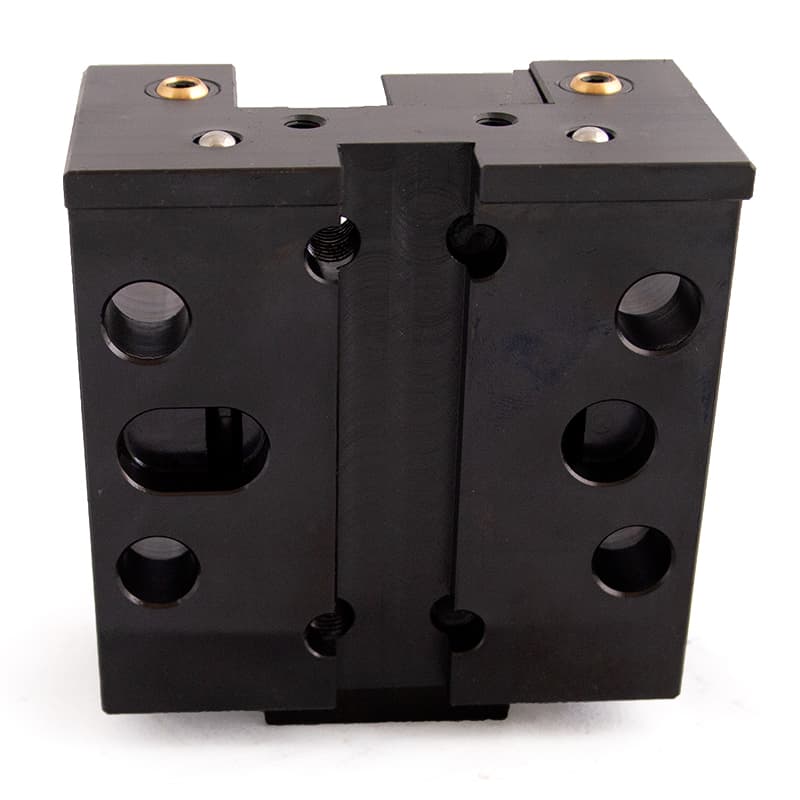

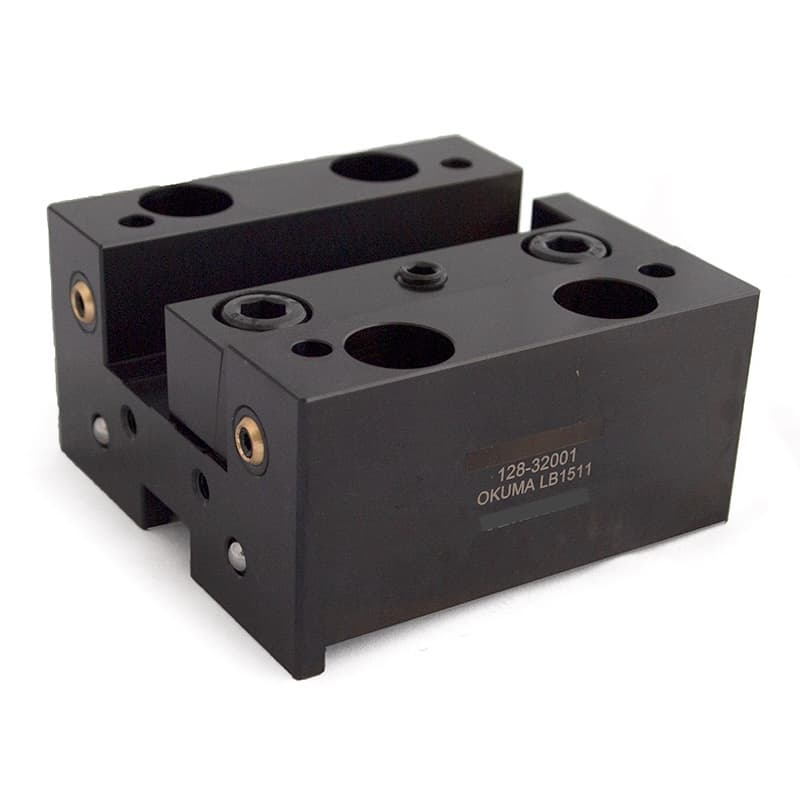

Bolt On face turning toolholder, clamping capacity 25x25mm, bolt grid 45x80

128-32001Running out of stock

This axial bolt mount toolholder fits to lathes equipped with BOT turret with 45x80 bolt grid, incl. HAAS SL/ST/DS(sub spindle) series and Okuma LB series. It holds up tools with square shunk (25х25mm) for face, groove and OD turning. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada

CA$223.94

CA$228.51

Std. delivery incl. Crossed-out price = offline retail

2 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Lathe holder type

Face turning

Turret type

Square Shank Size, mm

25x25

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:BOT 45x80

Technical Description

Engineered for longevity and performance, this BOT 45x80mm tool holder (SKU: 128-32001) delivers unmatched versatility for demanding operations. The BOT style tool holder is widely used by many equipment manufacturers, especially for standard OD machining of parts, which can be classified into two types:

Radial: This classic type of BOT tool holders features a slot for the shank positioned perpendicular to the rotation axis of the workpiece.
Axial or BOT facing tool holder: Here, the slot for the tool is positioned parallel to the rotation axis, allowing for efficient groove machining.

The 128-32001 belongs to the second type and allows machining with any tool featuring a 25mm x 25mm square shank. This facing tools holder for tool turret is compatible with the following machine tool models: OKUMA LB15 / LB25 / LB15II / LB300 and HAAS SL20 - SL30 / ST-20 / ST-25 / ST-30 / ST-35 / DS-30, equipped with a BOT-type turret featuring a 4-hole 45mm x 80mm bolt pattern. It is specifically designed to excel in performance-critical environments.

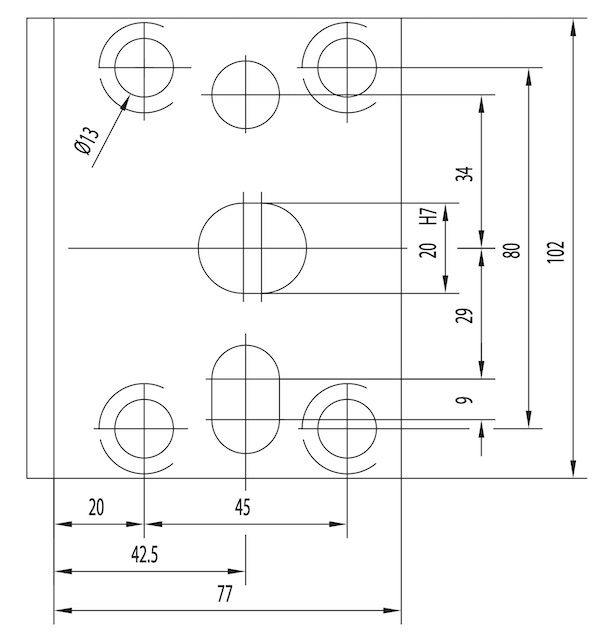

Details, mm:

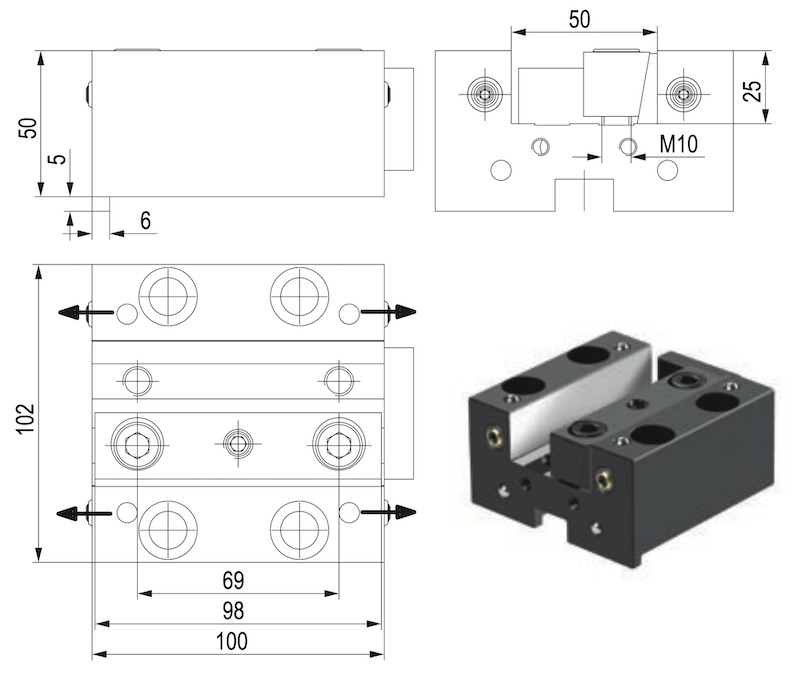

128-32001 Details, mm
