BMT60 toolholder for indexable drills, clamping capacity ø40mm, center height 90mm

Total discount 2%

Running out of stock

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/0c2/c0c/536/128-21516_1.png

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/ebf/003/7bd/128-21516_2.png

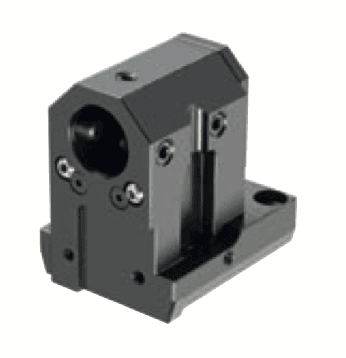

BMT60 toolholder for indexable drills, clamping capacity ø40mm, center height 90mm

128-21516Running out of stock

This axial base mount toolholder fits to lathes equipped with BMT 60 turret incl. OKUMA LB3000 EX (MW, MYW). It holds tools with round shunk of ⌀40mm for ID turning, boring, driling and threading. Tools with other shunk ⌀ are possible to hold with reduction sleeves. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$317.90

CA$324.39

Std. delivery incl. Crossed-out price = offline retail

2 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Lathe holder type

Boring bars / Index drills

Turret type

Tool Diameter, mm

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:BMT60-LB3000EX

Technical Description

Engineered for longevity and performance, this BMT60 tool holder (SKU: 128-21516) delivers unmatched versatility for demanding operations. The universal CNC lathe boring bar and index drills tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for tools with a cylindrical shank, particularly boring bars or index drills bodies, thanks to the additional positioning screw. The BMT-type holder is positioned on the turret edge, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 40mm, and the height from the spindle face to the hole axis is 90mm. Reducer sleeves can be used for tools with smaller diameters This holder is compatible with the following Okuma machine tool models, equipped with a BMT60 turret:

LB3000 EX (MW, MYW)

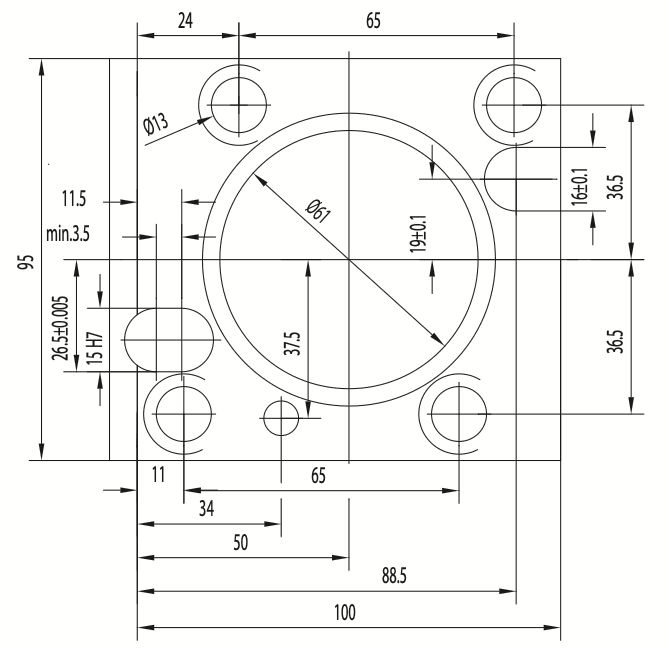

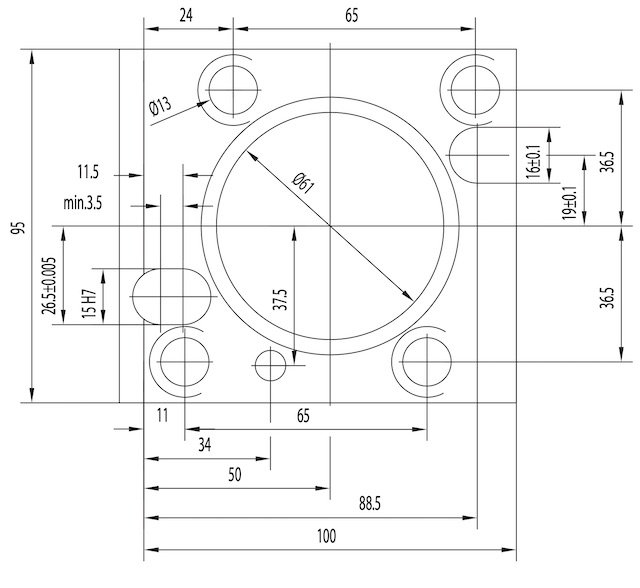

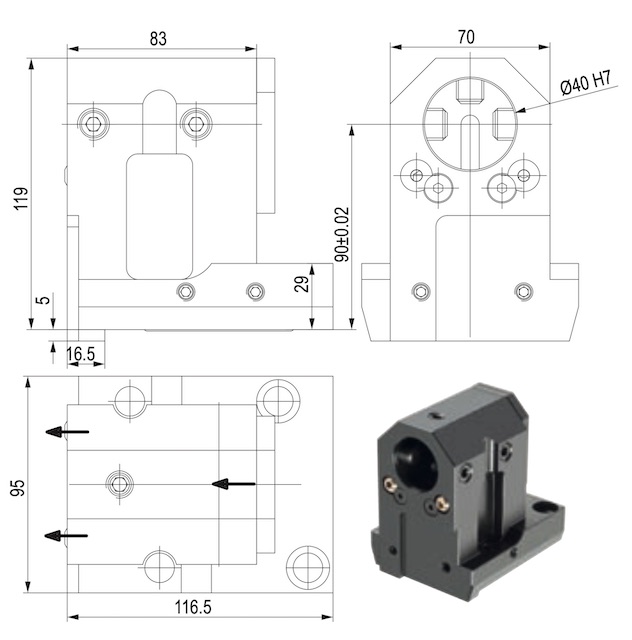

Details, mm:

128-21516 Details, mm
