VDI30 Boring bar holder, Ø 32mm, H 85mm, DMG MORI

115-53028Running out of stock

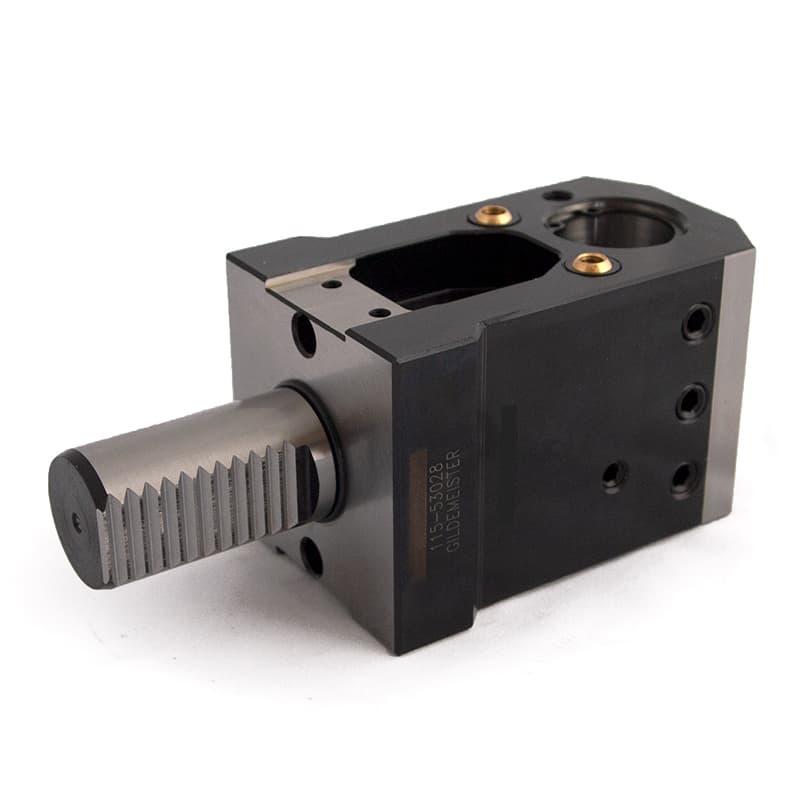

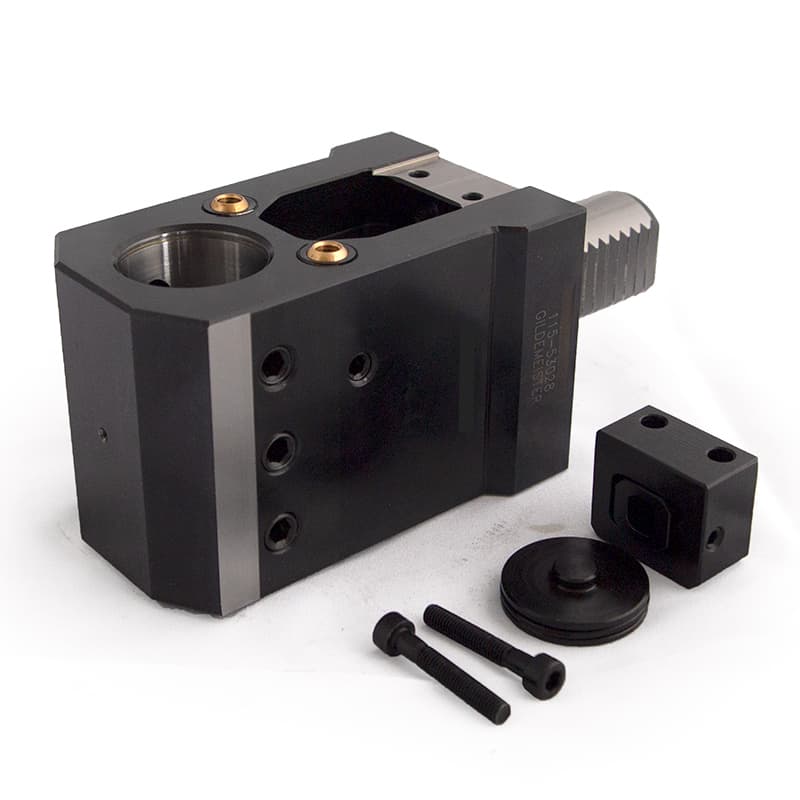

This axial boring bar toolholder fits to DMG CTX series lathes equipped with VDI30 (DIN 69980) radial turret. It holds tools with round shunk of ⌀32mm for ID turning. Height: 85mm. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada

CA$285.42

CA$291.24

Std. delivery incl. Crossed-out price = offline retail

2 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Lathe holder type

Boring bars / Index drills

Turret type

Tool Diameter, mm

Brand

EASYCUT

Item type

Lathe tool holders

Turret type:VDI30 Radial

Technical Description

A must-have for heavy-duty tasks, this VDI30 tool holder (SKU: 115-53028) guarantees stability and reduces vibration for optimal output. The CNC lathe boring bar tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for securing any tool with a cylindrical shank, particularly and primarily boring bars used for internal machining of parts. This VDI30-type holder is positioned on the turret edge, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 32mm, and the height from the turret edge to the hole axis is 85mm. Reducer sleeves can be used for tools with smaller diameters. This holder is compatible with the following machine tool models, equipped with a VDI30 radial turret featuring slots on the edge:

DMG MORI

CTX310/410 V4/V6 - CTX 320 V4/V6
CTX420 V4/V6 (option) - CTX Alpha 300 V4
CTX Alpha 500 V4/V6
CTX Beta 500/800/1250 V4/V6 (option)
TWIN 42/65/102
SPRINT 65/50

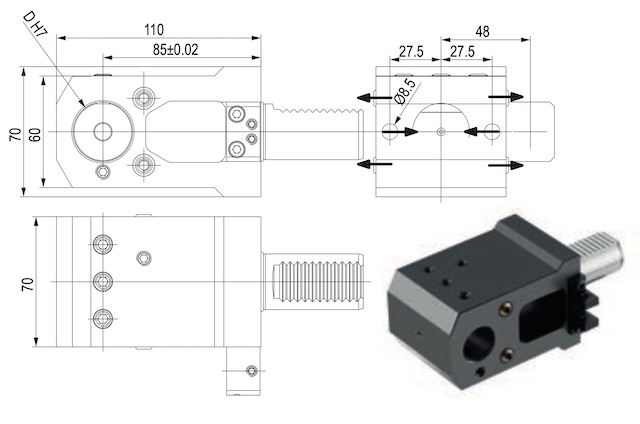

Details, mm:

115-53028 details
