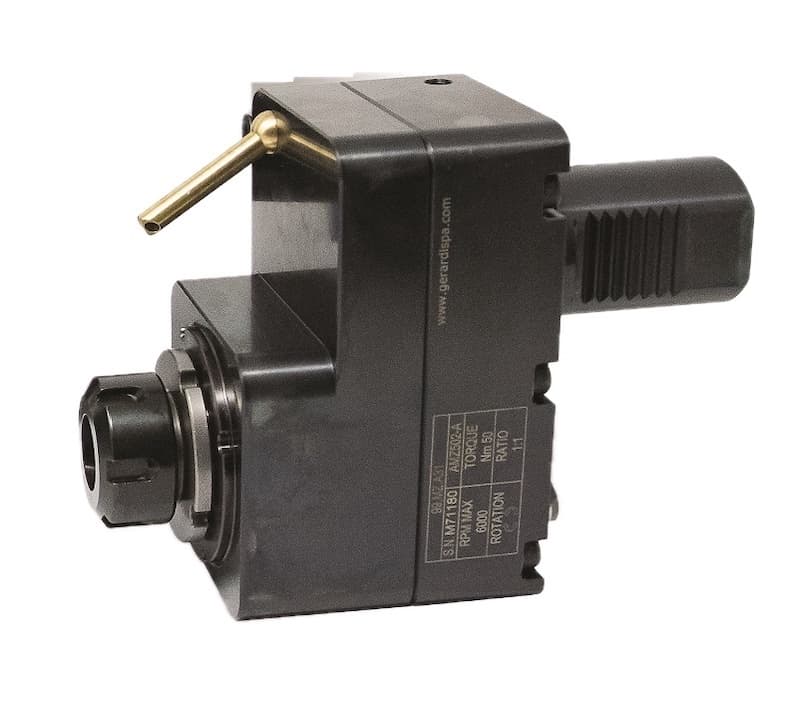

Straight (0°) live driven tool for Mazak HQ40 turrets, ER25, RPM=6000

DTM40HQER25SMade to order

Straight live driven tool for Mazak HQ40 turrets with ER25 chuck, external coolant, 6,000 RPM, and free shipping. Includes a 12-month warranty.

CA$3,064.28

CA$3,126.82

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Torque, Nm

Coupling (connection) type

Coolant supply

External

Gear ratio

1:1

RPM

6000

Orientation

Axial

Turret type

Collet standard

ER25

Brand

EASYCUT

Item type

Live Tooling

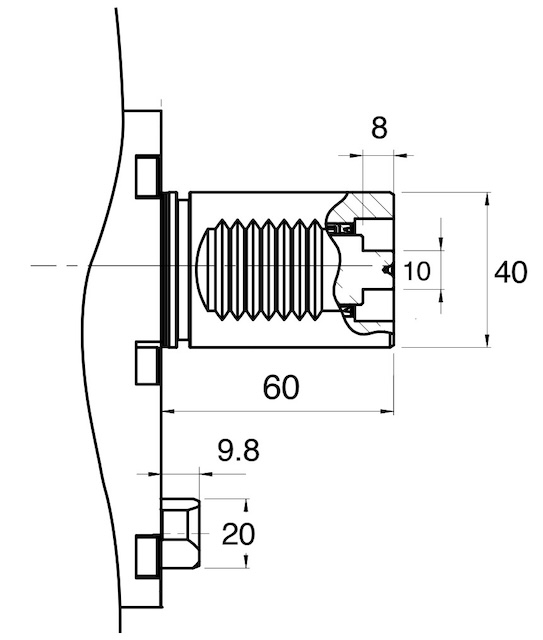

Coupling (connection) type:MAZAK HQ40

Technical Description

The DTM40HQER25S is a high-precision straight (0°) live driven tool engineered for Mazak HQ40 turrets. It delivers exceptional performance in milling, drilling, and tapping operations, enhancing the capabilities of your CNC turning centers while eliminating the need for additional part handling.

Key Specifications:

Turret Compatibility: Designed for Mazak HQ40 turrets.
Collet System: ER25 collet chuck for secure and versatile tool holding.
Rotational Speed: Maximum speed of 6,000 RPM for efficient and precise machining.
Torque and Power:
Maximum torque: 50 Nm.
Maximum power: 8 kW.
Center Height: 116 mm for accurate alignment during operation.
Axis Offset: 50 mm, ensuring flexibility and precise positioning for complex machining tasks.
Coolant System: Equipped with an external coolant supply for superior heat dissipation and prolonged tool life.
Rotation: Opposite to the machine spindle direction.
Gear Ratio: 1:1 for stable and consistent performance.

Features & Benefits:

Durable Bearings: Preloaded angular contact ball bearings ensure exceptional precision and a long operational lifespan.
High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form provide smooth and efficient power transfer.
Premium Build: Made in Italy, combining outstanding craftsmanship and high-quality materials.
Optimized Design: Axis offset and opposite rotation allow enhanced flexibility for various machining operations.
Cost Efficiency: Exceptional price-to-quality ratio, meeting the demands of industrial applications.

The DTM40HQER25S is a reliable and high-performance driven tool designed to meet the rigorous requirements of modern CNC machining. Its precise alignment, durable construction, and flexible features make it an indispensable addition to your CNC setup.

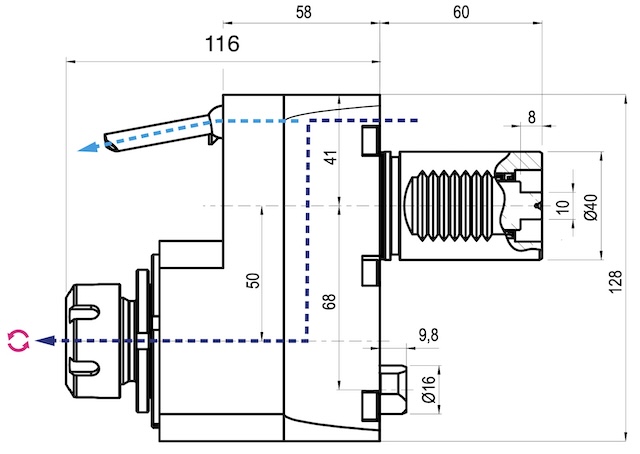

Details, mm:

DTM40HQER25S Drawing
