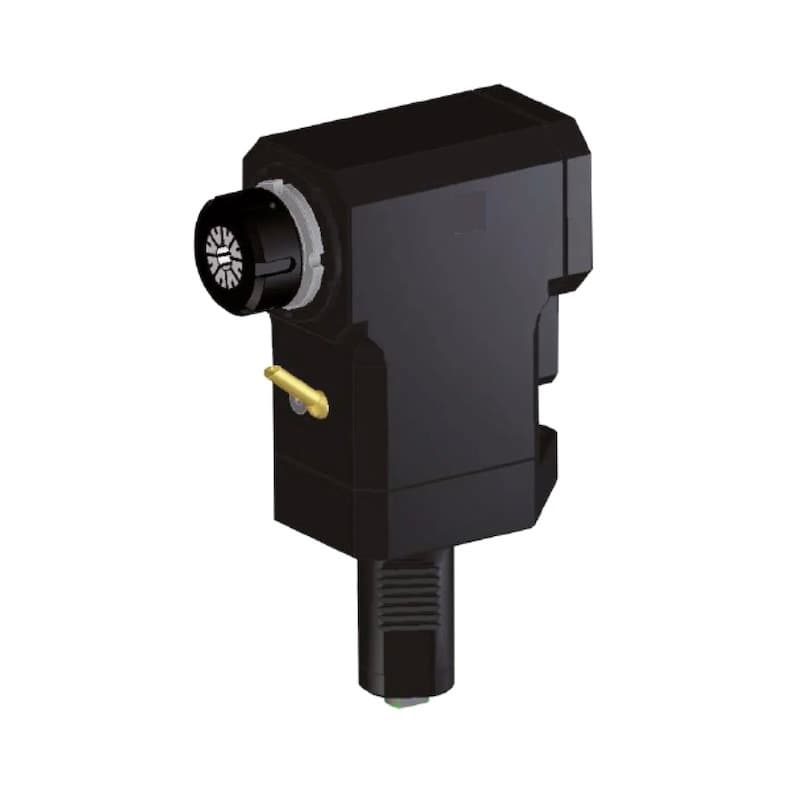

Angle (90°) live driven tool for Mazak HQ40 turrets, ER25, RPM=6000

DTM40HQER25AMade to order

This 90° angled live toolholder fits Mazak HQ40 turrets, enabling efficient radial machining. ER25 collet chuck accommodates a range of cutting tools. CNCmarket.ca offers free shipping and a 12-month warranty within Canada.

CA$3,398.91

CA$3,468.28

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Torque, Nm

Coupling (connection) type

Coolant supply

External

Gear ratio

1:1

RPM

6000

Orientation

Radial

Turret type

Collet standard

ER25

Brand

EASYCUT

Item type

Live Tooling

Coupling (connection) type:MAZAK HQ40

Technical Description

The DTM40HQER25A is a premium angled (90°) live driven tool designed for Mazak HQ40 turrets. With advanced engineering and high-quality materials, this tool enhances the milling, drilling, and tapping capabilities of CNC turning centers, reducing the need for additional parts handling and ensuring precision in every operation.

Key Specifications:

Turret Compatibility: Specifically designed for Mazak HQ40 turrets.
Tool Orientation: 90° angled configuration for versatile machining applications.
Collet System: ER25 collet chuck for secure and adaptable tool holding.
Rotational Speed: Maximum speed of 6,000 RPM for efficient and precise machining.
Torque and Power: Maximum torque: 50 Nm.
Maximum power: 8 kW.
Center Height: 115 mm for precise alignment and operational accuracy.
Distance to ER Nut Tip: 87.5 mm from the center of the tool slot to the ER nut tip for enhanced reach and flexibility.
Coolant System: Equipped with an external coolant supply for efficient heat management and extended tool life.
Rotation: Opposite to the machine spindle direction.
Gear Ratio: 1:1 for stable and consistent performance.

Features & Benefits:

Enhanced Bearings: Preloaded angular contact ball bearings deliver superior precision and durability.
Precision Gears: Gleason spiral bevel gears with fully ground involute form ensure smooth and efficient power transmission.
Italian Craftsmanship: Manufactured in Italy to the highest standards of quality and durability.
Optimized Design: The 90° angle and specific distance from the tool slot provide improved accessibility and adaptability for complex operations.
Cost-Effective: Combines high performance with an excellent price-to-quality ratio, meeting the demands of industrial machining.

The DTM40HQER25A is the ideal choice for CNC professionals seeking reliable, high-quality angled live driven tools. Its precision design and superior build make it indispensable for demanding machining tasks.

Details,mm:

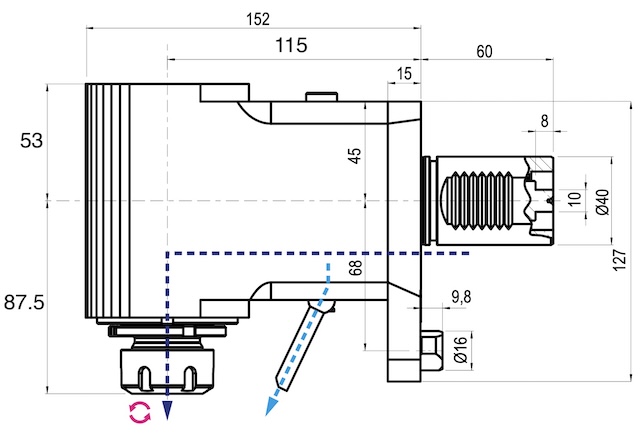

DTM40HQER25A drawing
