Angle (90°) live driven tool for VDI40 turret with 117.55mm coupling, ER32, RATIO 1:1

Total discount 2%

Made to order

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/afa/203/f65/dti40her32a-live-tooling-block-vdi40-haas_2.jpeg

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/a32/cdf/3c3/dti40her32a-live-tooling-block-vdi40-haas.jpeg

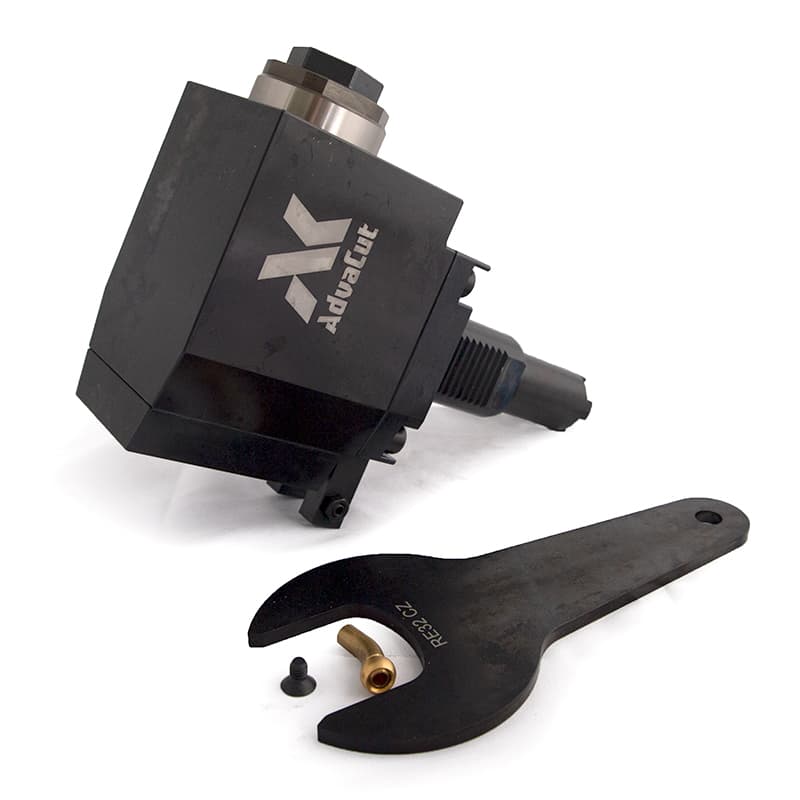

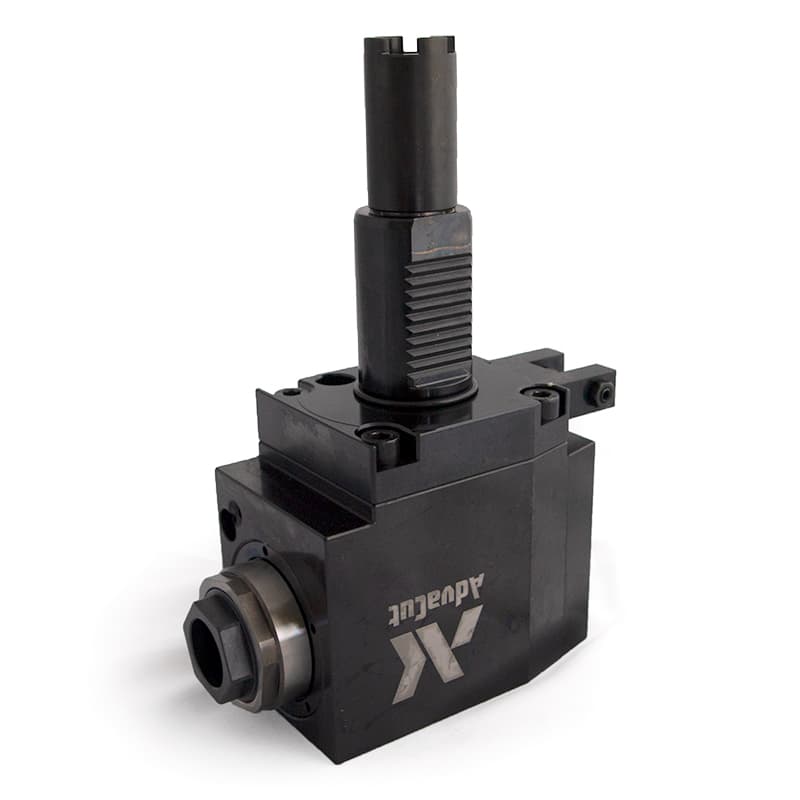

Angle (90°) live driven tool for VDI40 turret with 117.55mm coupling, ER32, RATIO 1:1

DTI40HER32AMade to order

This 90° angled live toolholder for VDI40 turrets with a 117.55 mm coupling supports radial machining. The ER32 collet chuck handles diverse cutting tools for milling, drilling, and threading. CNCmarket.ca offers free shipping and a 12-month warranty within Canada.

CA$2,666.15

CA$2,720.56

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Coolant supply

External

Turret type

Torque, Nm

Gear ratio

1:1

Coupling (connection) type

Orientation

Radial

RPM

6000

Collet standard

ER32

Brand

EASYCUT

Item type

Live Tooling

Turret type:VDI40 Classic

Technical Description

The DTI40HER32A is a premium angled (90°) live driven tool specifically designed for VDI40 turrets with a 117.55 mm HAAS coupling. Engineered for precision and durability, it enhances the milling, drilling, and tapping capabilities of CNC turning centers, offering exceptional performance and reliability.

Key Specifications:

Turret Compatibility: Designed for VDI40 turrets with a 117.55 mm HAAS coupling.
Tool Orientation: 90° angled configuration for versatile and accessible machining operations.
Collet System: ER32 collet chuck for secure and adaptable tool holding.
Rotational Speed: Maximum speed of 6,000 RPM for efficient machining performance.
Torque and Power: • Maximum torque: 63 Nm.
Maximum power: 10 kW. • Center Height: 75 mm, ensuring accurate alignment for optimal operation.
Distance to ER Nut Tip: 87 mm from the center of the tool slot, providing enhanced reach and flexibility.
Coolant System: External coolant supply for superior heat dissipation and extended tool lifespan.
Rotation: Same direction as the machine spindle for seamless functionality.
Gear Ratio: 1:1 for consistent and reliable power delivery.

Features & Benefits:

Precision Bearings: Equipped with preloaded angular contact ball bearings for exceptional precision and durability in high-demand applications.
Superior Gearing: Gleason spiral bevel gears with fully ground involute form ensure smooth and efficient power transmission.
Premium Build: Made in Italy, combining advanced engineering with high-quality materials for long-lasting performance.
Optimized Design: The 90° angled configuration and specific tool slot-to-nut distance offer enhanced flexibility for complex machining tasks.
Cost Efficiency: Delivers outstanding price-to-quality value, meeting the needs of industrial machining professionals.

The DTI40HER32A is a dependable and versatile choice for CNC professionals who demand precision, reliability, and versatility from their live driven tools. Its advanced design and robust construction make it a valuable addition to any machining setup.

Details, mm:

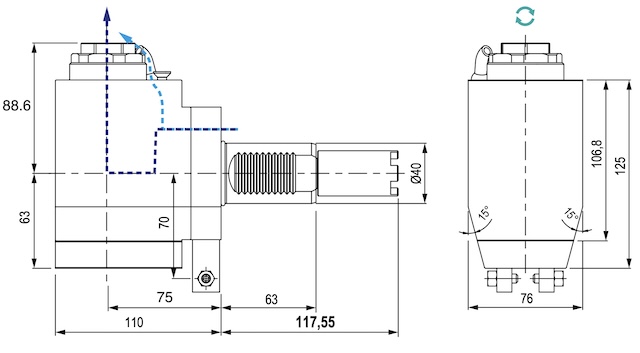

DTI40HER32A Drawing
