Angle (90°) live driven tool for VDI40 turret with DIN5480 coupling, ER32, RPM=6000

Jul 7, 2026, 6:17 PM

Email: info@atlaya.ca

Phone: 8257475518

Total discount 2%

Made to order

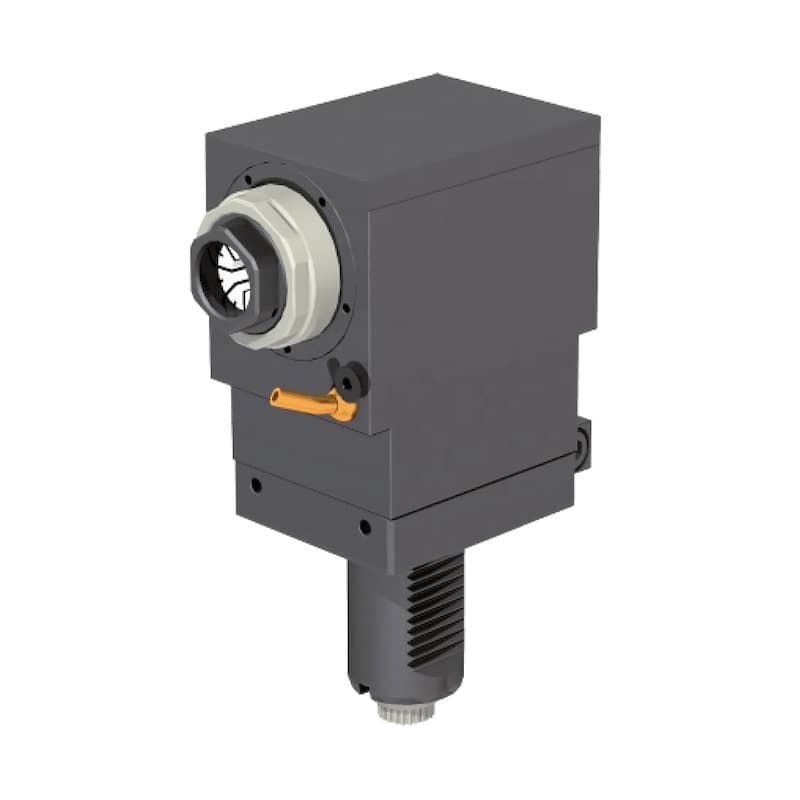

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/83c/5b2/dbb/dti4054er32a.jpg

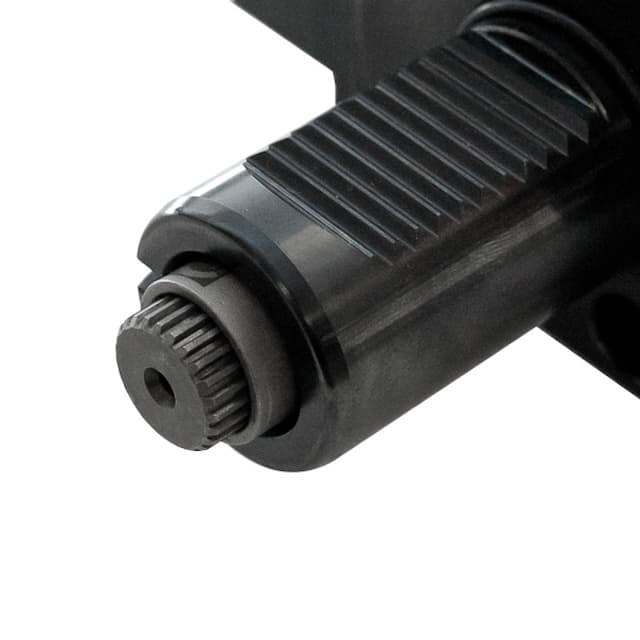

https://d1wpc4vinyq6c2.cloudfront.net/storage/media/catalog_file/259/7ff/8ec/din5480.jpg

Z (# teeth)

DTI4054ER32AMade to order

This 90° angled live toolholder for VDI40 turrets with DIN5480 coupling enables efficient radial machining. Equipped with an ER32 collet chuck, external coolant system, and opposite rotation, it allows precise milling, drilling, and threading. CNCmarket.ca offers free shipping and a 12-month warranty within Canada.

CA$3,663.24

CA$3,738.00

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Torque, Nm

Coolant supply

External

Gear ratio

1:1

RPM

6000

Orientation

Radial

Turret type

Collet standard

ER32

Coupling (connection) type

Brand

EASYCUT

Item type

Live Tooling

Turret type:VDI40 Classic

Technical Description

The DTI4054ER32A is a high-precision angled (90°) live driven tool engineered for VDI40 turrets with a DIN5480 coupling, incl. Sauter. Designed for radial machining, this tool enables milling, drilling, and threading operations without requiring additional setups on a milling machine. Its opposite spindle rotation and 1:1 gear ratio ensure optimal performance in complex machining tasks.

Key Specifications:

Turret Compatibility: Designed for VDI40 turrets with DIN5480 coupling.
Tool Orientation: 90° angled configuration for versatile radial machining.
Collet System: ER32 collet chuck for secure and flexible tool holding.
Rotational Speed: Maximum of 6,000 RPM for high-speed operations.
Torque and Power: Maximum torque: 63 Nm.
Maximum power: 10 kW.
Center Height: 100 mm
Distance to ER Nut Tip: 71 mm from the center of the tool slot for improved reach.
Coolant System: External coolant supply for superior heat dissipation and extended tool lifespan.
Rotation: Opposite to machine spindle for enhanced machining control.
Gear Ratio: 1:1 for stable and efficient power transmission.

Features & Benefits:

Durable Bearings: Preloaded angular contact ball bearings ensure superior accuracy and durability.
Precision Gears: Gleason spiral bevel gears with fully ground involute form ensure smooth and efficient power transfer.
High-Quality Build: Manufactured in Italy with top-tier materials for long-lasting performance.
Optimized Design: 90° angle and specific tool slot-to-nut distance provide excellent accessibility for intricate machining operations.
Cost Efficiency: Offers an excellent price-to-quality ratio, with 12-month warranty and free shipping within Canada.

The DTI4054ER32A is a must-have for CNC professionals looking to expand their machine’s capabilities with a reliable, high-performance live driven tool.

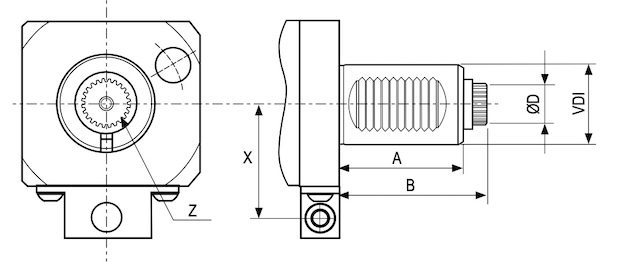

Details, mm:

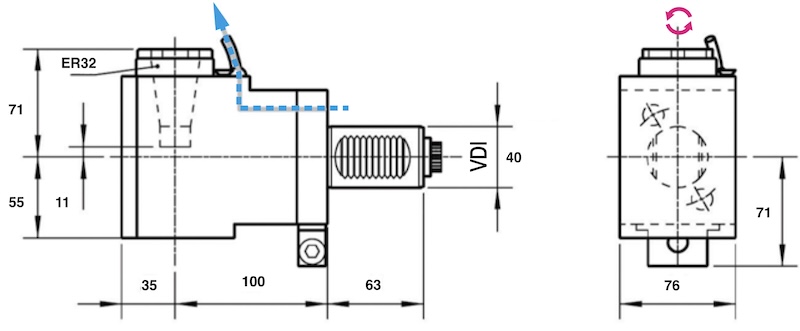

DTI4054ER32A Drawing

Reviews

You must be logged in to leave a review.
