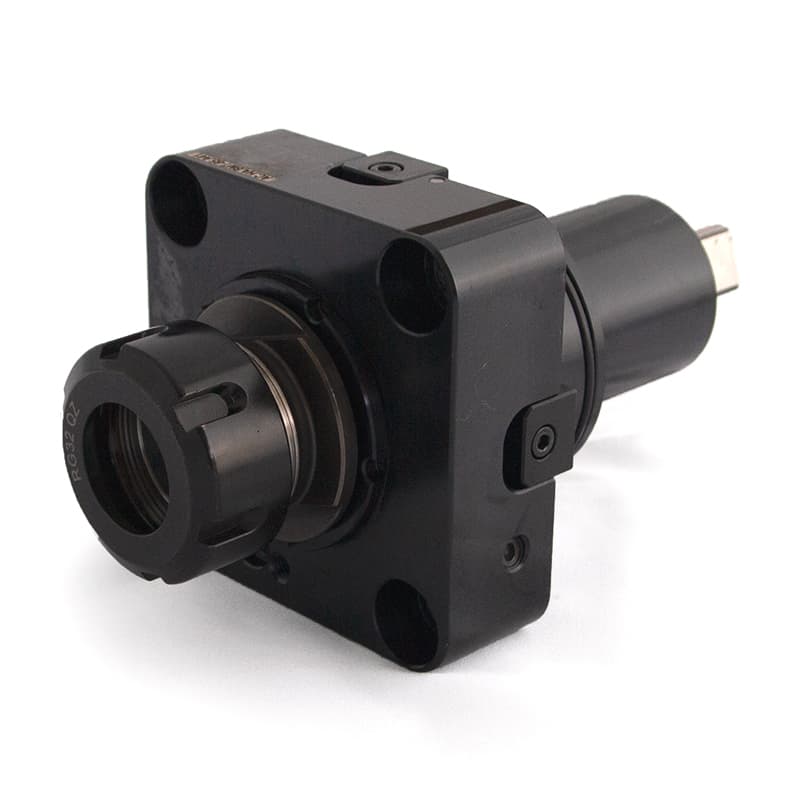

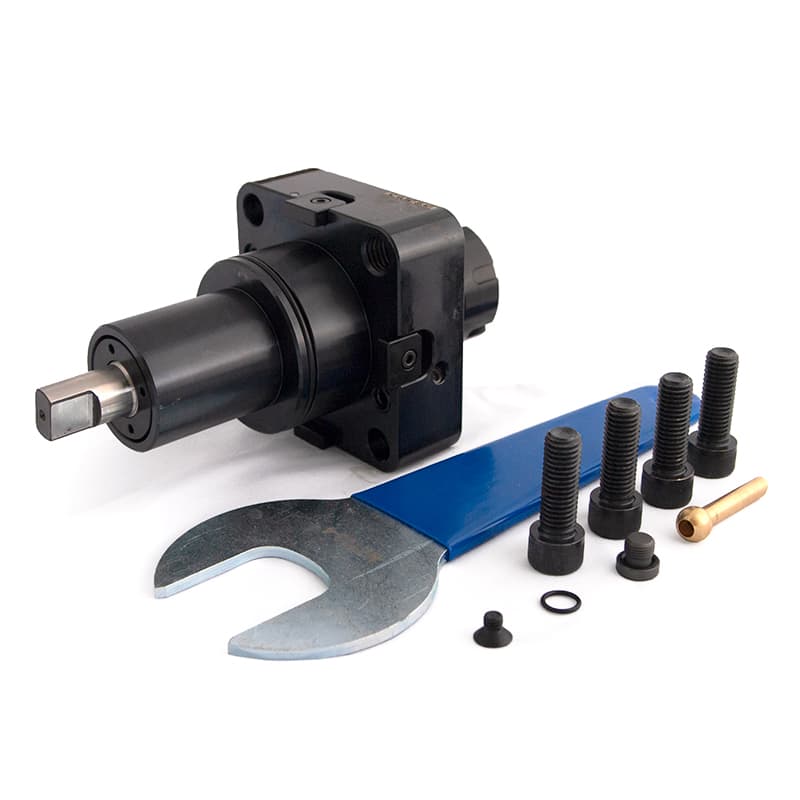

Straight (0°) live driven tool for BMT65 turrets, ER32, RPM=6000, RATIO 1:1

DTB65ER32SRunning out of stock

Straight live toolholder for axial operations on BMT65 turrets. The ER32 collet chuck supports a variety of tools for machining tasks. Comes with 12-month warranty and free shipping within Canada from CNCmarket.ca.

CA$1,758.48

CA$1,953.87

Std. delivery incl. Crossed-out price = offline retail

3 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Gear ratio

1:1

Orientation

Radial

RPM

6000

Coolant supply

External

Coupling (connection) type

DOOSAN BMT, HAAS BMT

Torque, Nm

Collet standard

ER32

Turret type

Brand

EASYCUT

Item type

Live Tooling

Turret type:BMT65

Technical Description

The DTB65ER32S is a high-performance straight (0°) live driven tool engineered for BMT65 turrets. Designed for precision, reliability, and versatility, it allows seamless milling, drilling, and tapping operations directly on CNC turning centers, eliminating the need for additional handling steps.

Key Specifications:

Turret Compatibility: Specifically designed for BMT65 turrets.
Collet System: ER32 collet chuck for secure and adaptable tool holding.
Rotational Speed: Capable of reaching a maximum speed of 6,000 RPM, ensuring high efficiency.
Torque and Power:
Maximum torque: 70 Nm.
Maximum power: 10 kW.
Height: 78 mm, ensuring precise alignment for optimal performance.
Coolant System: External coolant supply for effective heat dissipation and extended tool lifespan.
Rotation: Same direction as the machine spindle for smooth and consistent operation.
Gear Ratio: 1:1, ensuring stable and reliable power delivery.

Features & Benefits:

Durable Bearings: Equipped with preloaded angular contact ball bearings, ensuring superior precision and longevity.
High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form for efficient and reliable power transmission.
Italian Craftsmanship: Manufactured in Italy, guaranteeing premium quality and high durability.
Cost Efficiency: Combines industrial-grade performance with an excellent price-to-quality ratio, meeting the demands of professional applications.

The DTB65ER32S is an essential tool for CNC professionals looking to enhance their machining capabilities with a reliable, high-quality, straight live driven tool. Its robust construction and advanced engineering make it an invaluable addition to any CNC turning center.

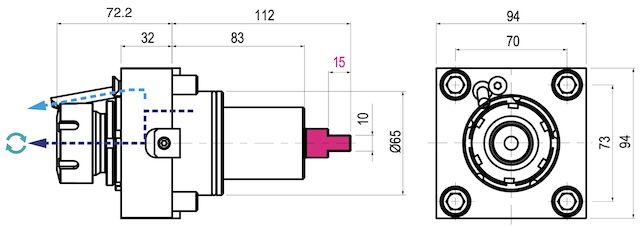

Details, mm:

DTB65ER32S Drawing
